The molten iron ladle is used for pouring in the casting workshop. After receiving molten iron in front of the furnace, it is transported to the casting mold by a crane for pouring
II. Main technical parameters and overall dimensions of molten iron ladle
1. Hanging ladle type, two-way rotary type
2. Reducer type, double worm gear transmission

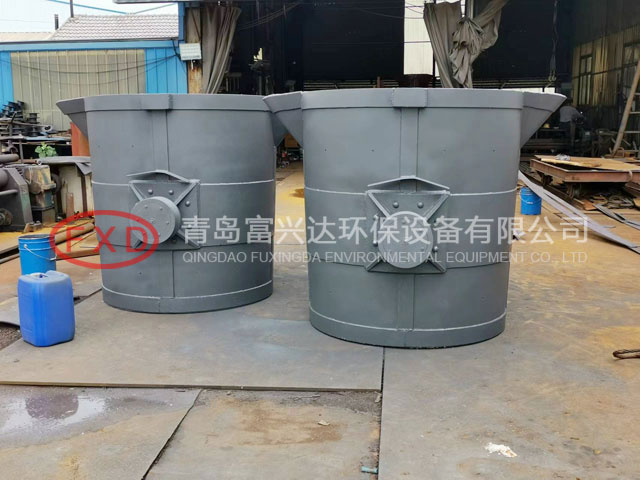

molten iron ladle
2. Double worm gear pair transmission is adopted. Although the manufacturing requirements are high, the transmission is flexible and free, and the bidirectional reversibility is good
3. The suspender is forged, which is more reliable and safe than the steel plate weldment
4. The steel plate of the enclosure is thick, and the enclosure bottom structure adopts the triple insurance combined with taper, bottom hoop and welding, which not only extends the service life, but also ensures the safety of the operator
5. The main body and suspender, reducer and handwheel are all equipped with chain clamping plates which can be locked at any time
6. The two trunnions and the suspender are equipped with self-aligning bearings, with good consistency< br/>
