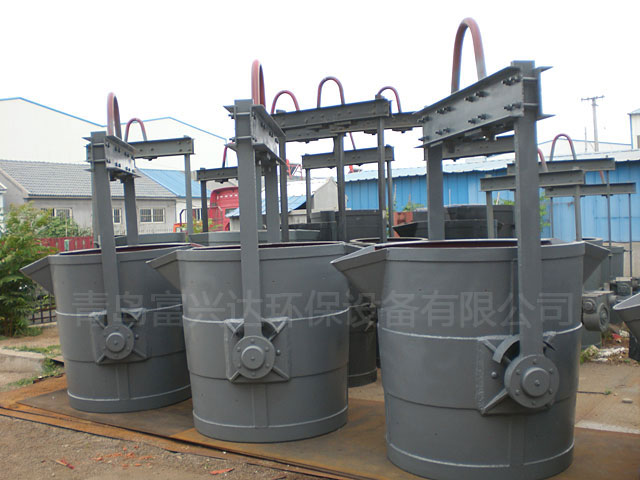

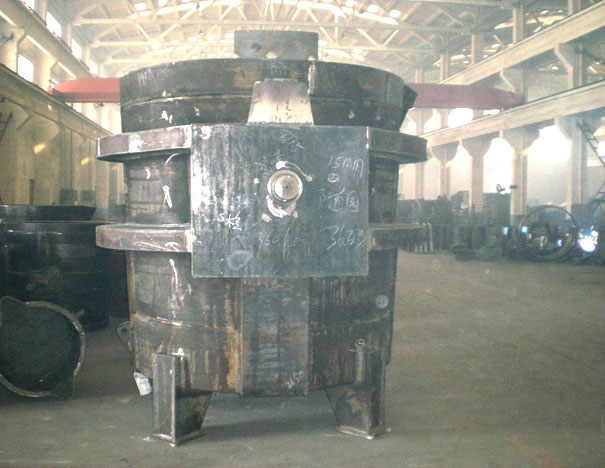

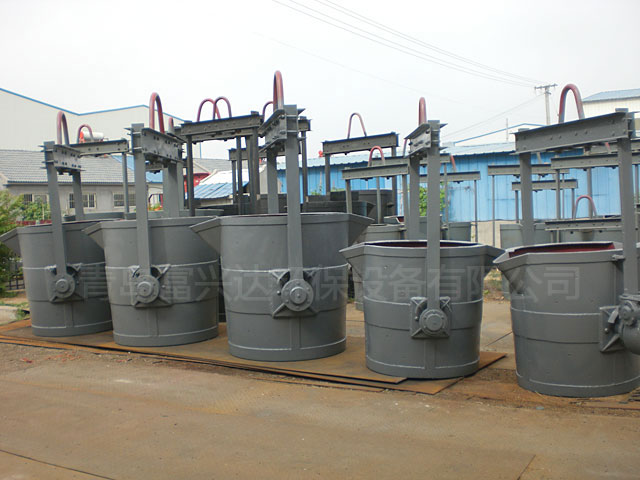

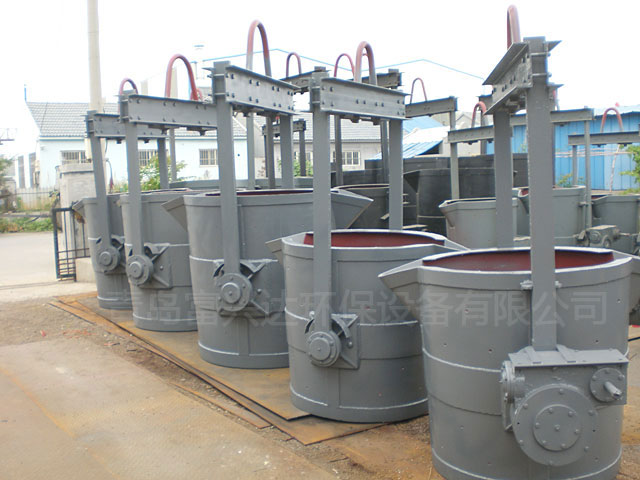

我公司可生產鋼水包，分為塞桿式和滑動水口式兩種規(guī)格．
| 鋼水包規(guī)格 (t) |
桶口直徑 (mm) |
桶體高度 (mm) |
鋼水包外形尺寸 長×寬×高(mm) |
總重(t) |
| GB-8 | 1550 | 1675 | 1960×1960×3335 | 12.4 |
| GB-10 | 1733 | 1765 | 2132×2132×3425 | 15.5 |
| GB-12 | 1810 | 1850 | 2230×2230×3630 | 19.5 |
| GB-15 | 1925 | 1975 | 2340×2340×3775 | 23 |
| GB-20 | 2080 | 2141 | 2486×2480×4102 | 31 |
| GB-25 | 2206 | 2285 | 2622×2620×4385 | 40 |
| GB-30 | 2316 | 2408 | 2760×2650×4680 | 46 |
| GB-35 | 2420 | 2518 | 2880×2750×4760 | 52 |
| GB-40 | 2528 | 2616 | 3056×2800×4860 | 58 |
| GB-45 | 2591 | 2710 | 3120×2820×5180 | 62 |
| GB-50 | 2650 | 2830 | 3280×2860×5260 | 71 |
| GB-60 | 2808 | 2945 | 3450×3010×5400 | 79 |
| GB-70 | 2845 | 2983 | 3500×3050×5560 | 95 |
| GB-90 | 3160 | 3400 | 3850×3360×5880 | 120 |
| GB-105 | 3288 | 3467 | 3980×3490×5950 | 136 |
| GB-160 | 3730 | 3953 | 4600×3950×6600 | 210 |
| GB-200 | 4060 | 4250 | 4841×4560×7432 | 260 |
